A grain stirrer is a mechanical device fitted inside a crop store that continuously moves and aerates the grain heap during the drying process. By preventing compaction and improving airflow through the crop, a grain stirrer can dramatically lower energy costs and allow grain to be stored at greater depths — meaning more tonnes per square metre of floor space. It also eliminates hot spots and ensures even moisture levels throughout the heap, so when it comes to outloading you can be confident the grain is consistently dry rather than finding wetter pockets mixed in with the rest.
Why does grain compaction slow drying?
When grain is loaded into a store, the weight of the heap compacts the lower layers and grain pushers compact the grain as they load more into the store. Fine material, broken grain, and dust tend to settle in pockets, further restricting airflow. This means the drying air pushed up through the floor by the fan cannot pass evenly through the crop — it follows the path of least resistance, leaving some areas poorly dried while others receive too much airflow. The result is uneven drying, with some grain remaining too wet while the rest risks being over-dried.
How does a stirrer fix this?

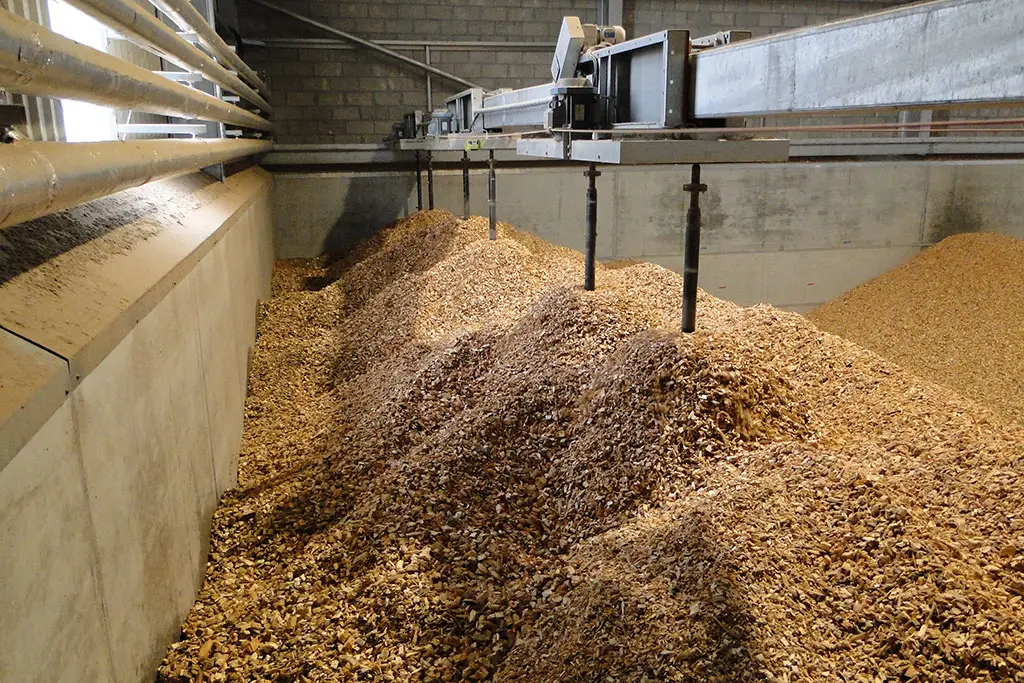

A grain stirrer runs on a gantry above the heap and works auger-style screws down through the crop as it travels across the store. This breaks up compacted areas, redistributes fines, and loosens the grain so that air can pass through more freely and evenly. The effect is a significant increase in airflow per tonne of grain, which means drying fans can work more efficiently and at a lower kilowatt rating than would otherwise be needed.
What are the practical benefits of using a grain stirrer?
Using a grain stirrer delivers several practical advantages for farmers. When used alongside a high-temperature drying system, a stirrer allows higher temperatures to be run safely — speeding up the drying process. Drying is more uniform, reducing the risk of any part of the heap remaining too wet. Grain can be stored at greater depths than in a static store, meaning more tonnes can be held per square metre of floor area. Fan units can be smaller and lower rated, as the airflow required per tonne is greatly reduced. Overall energy consumption per tonne dried is lower, improving the economics of the drying operation.
Can a stirrer be fitted to an existing grain store?
Yes. The Harvest Maxi-Stirrer is designed to be retrofitted to almost any existing crop storage building, not just new builds. As long as the building has adequate structural integrity to support the gantry system, a Maxi-Stirrer can be installed to improve the performance of an existing store without the need for major construction work. This makes it a cost-effective upgrade for farms looking to increase their storage capacity or reduce drying costs without building a new facility.
The Harvest Maxi-Stirrer
The Harvest Installations Maxi-Stirrer has been a core part of our product range since its development in the early years of the business. It is built for reliability and designed to work alongside our Constant Humidity Controller and Store Controller systems, giving farmers a fully integrated and automated grain drying and storage solution. For more information or to discuss whether a Maxi-Stirrer is right for your store, contact our team at Harvest Installations.
